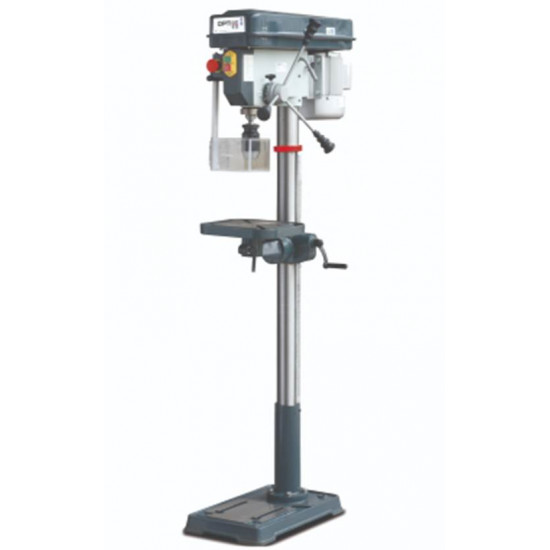

OPTIMUM / Drill Machine Pedestal 16MM 550W 220V / KS16

OPTIMUM / Drill Machine Pedestal 16MM 550W 220V / KS16
Out Of Stock
OPTIMUM / Drill Machine Pedestal 16MM 550W 220V / KS16
R 10,867.50
Ex Tax: R 9,450.00
  • Stock: Out Of Stock
  • Model: KS16 PEDISTAL DRILL
  • Weight: 46.00kg
  • Dimensions: 750.00mm x 720.00mm x 910.00mm
  • SKU: KS16 PEDISTAL DRILL
OPTIMUM / Drill Machine Pedestal 16MM 550W 220V / KS16

Cost-efficient bench drills and upright drilling machines with V-belt
Precisely machined drilling table, can be inclined by ± 45° and turnable by 360°
Solid, largely dimensioned base plate with slots, heavily ribbed at the rear side
400 volt types with right-/left-handed rotation cam switch
Millionfold proven quality
from OPTIdrill B 14: Serial T-slots for vice fixture
Ground multi-toothed follower
Best power transmission due to aluminium belt pulleys in connection with toothed GATES quality
 V-belt
V-belt cover with safety switch
Guaranteed true running accuracy of better than 0.03 mm measured in the drilling spindle
Drilling spindle with precision ball bearing
OPTIMUM quick-action drill chuck included in the standard scope of delivery
Spindle sleeve lever with softgrip handles for safe working
Drill depth stop
User-friendly switch according to IP 54 with undervoltage release

Separate EMERGENCY-STOP push button
Electrical connection  400 V / 3 Ph ~50 Hz
Motor power  0,55 kW
Drilling capacity in steel (S235JR)  20 mm
Continuous drilling cap. steel  18 mm
Throat depth  170 mm
Spindle stroke  80 mm
Spindle seat  MT 3
Spindle speeds  210 – 2.220 min-1
Number of steps  12 Steps
Drilling table size length x width  275 x 275 mm
T-slot size (slot width)  14 mm, diagonal
Drilling table slewable  +/- 45 degree
Drilling table rotatable  360 degree
Distance spindle – table  max. 760 mm
Distance spindle – stand  max. 1.210 mm
Stand work surface L x W  235 x 220 mm
Column diameter  70 mm
Length x width x height  690 x 390 x 1.570 mm

Net weight  57 kg
