- Stock: In Stock
- MPN: MCOP1432 388129
- Weight: 3.00kg
- Dimensions: 300.00mm x 300.00mm x 100.00mm
- SKU: MCOP1432
- UPC: 6003398120118

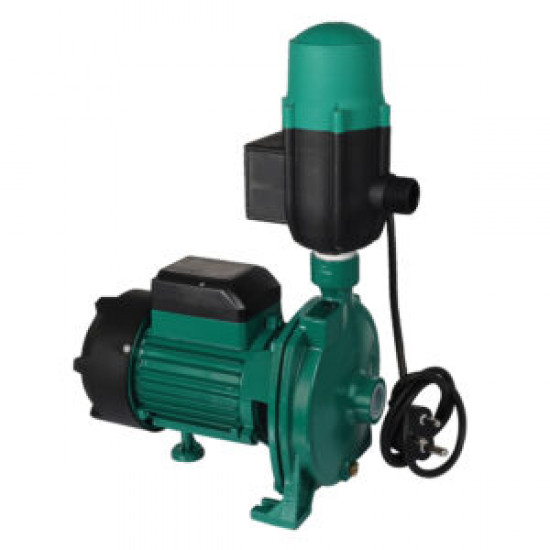

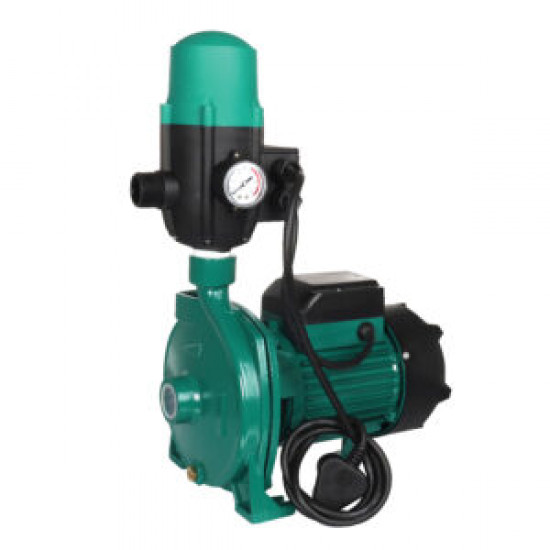

TRADE PROFESSIONAL / 0.75kW/1.0HP Centrifugal Water Pump with Auto Control Switch / MCOP1432
The MCOP1432 Centrifugal Water Pump Kit is a versatile solution for domestic and light industrial water management needs.
Powered by a 0.75kW (1.0HP) motor, it efficiently pumps clean water or non-aggressive liquids with a maximum flow rate of 100L/min and a head height of up to 30m.
The included automatic control switch ensures hassle-free operation, automatically starting and stopping the pump when taps or valves are opened or closed.
Its durable construction features copper windings, a cast iron pump body, and a brass impeller, making it reliable for irrigation, water transfer, or boosting water pressure.
The unit is compact and easy to install and comes with a two-year warranty for peace of mind.
The kit is made up of MCOP1417 and MCOP1410
Automatic Pump Control Switch (MCOP1410)
Automatic pump controllers are used to start and stop pumps automatically.
When a tap or valve is switched on, the automatic pump controller will switch the pump on and the water will flow.
When the tap or valve is turned off, the pump controller will switch the pump off and the water will stop flowing.
Recommended for clean water or non aggressive liquids.
1.0HP Centrifugal Water Pump (MCOP1417)
Recommended for pumping clean water or non-aggressive liquids.
These are low head single impeller water pumps with a high flow rate which makes it ideal for irrigation and the general moving of water within
specification.
FEATURES MCOP1410 (Control Switch)
• 1,3m Power Cable with Plug

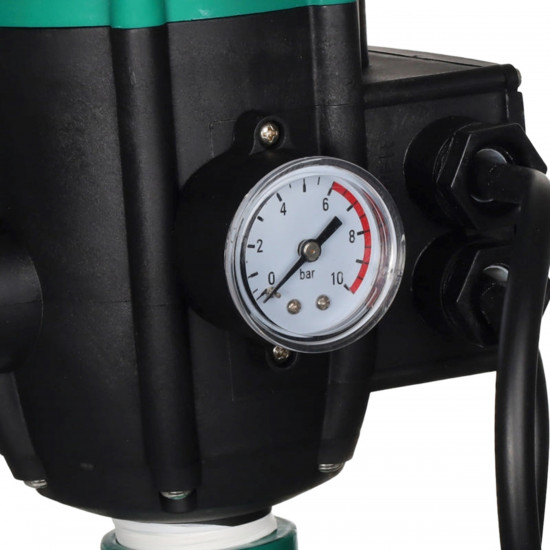

• Supplied with Gauge
• 2 Year Warranty
• Domestic to Light Industrial Use
FEATURES MCOP1417 (Water Pump)
• Copper Windings
• Cast Iron Pump Body
• Brass Impeller
• Non Self Priming
• High Flow
• 0.4m Cable
• 2 year Warranty
• Domestic to Light Industrial Use
What's in the Box
- 1 x Pump with 0.4m cable (MCOP1417)
- 1 x Auto control switch with 1.3m cable and plug (MCOP1410)

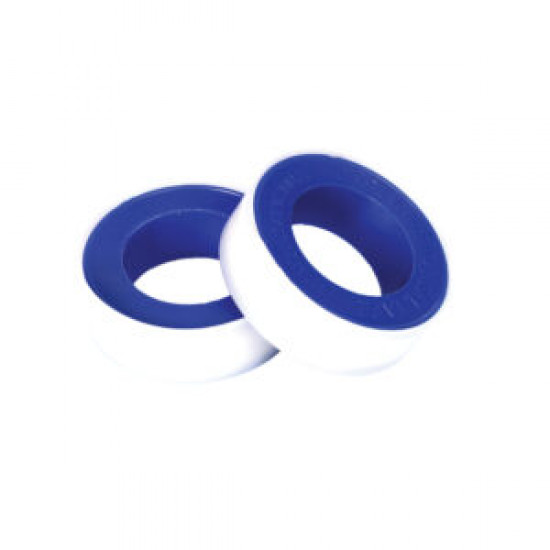

- 2 x Plumber’s Tape
- 1 x Instruction Manual
SPECIFICATIONS MCOP1410 (Control Switch)
• Max Current: 10 Amps
• Max Working Pressure: 10 Bar
• Starting Pressure: 1.5 - 3.0 Bar
• Inlet/Outlet: G1”
• Max Working Temp.: 60ºC
• Protection Rating: IP65
SPECIFICATIONS MCOP1417 (Water Pump)
• Input Voltage: 220V /50Hz
• Power: 0.75kW / 1.0HP
• Max Flow: 100L/min
• Max Head: 30M
• Max Suction: 8M
• Inlet/Outlet: G1”
