| Quantity | Unit Price | You Save |
|---|---|---|
| 5 or more | R 14.38 | 4.15 % |
| 10 or more | R 13.95 | 7.01 % |
| 20 or more | R 13.63 | 9.16 % |
- Stock: 1477
- MPN: TC SE02
- Weight: 0.02kg
- Dimensions: 66.00mm x 20.00mm x 20.00mm
- SKU: TC SE02
- UPC: 6009675083381
Size: M6 - M8
Diameter: 3 0mm
Recommended Drill Size: 4.2 mm
Shank: 4.0mm Square Shank
Application:

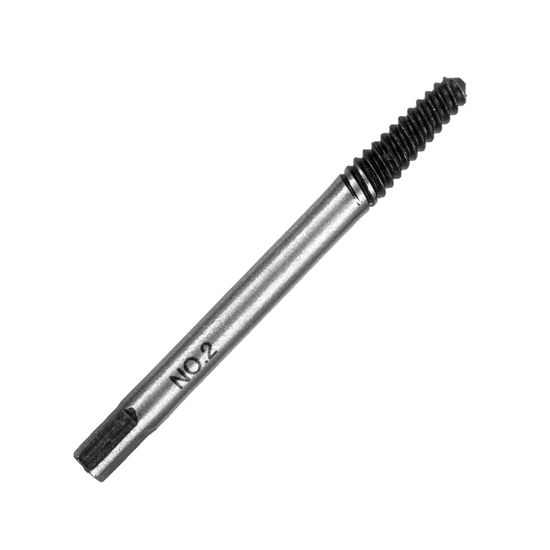

The Tork Craft Screw Extractor is for the removal of broken bolts and studs, made of carbon steel. Determine the size of the bolt and the desired extractor size, use a file and flatten the broken bolt surface, usually bolts that broke are left with an uneven surface.
Locate the center on the flattened surface and mark with a center punch. Drill a pilot hole, start off with a small diameter and increase to the recommended drill size depending on the extractor size in use.
Insert the extractor into the pilot hole and using a tap wrench the bolt can now be extracted carefully, by turning the screw extractor anti-clockwise.
- Carbon Steel
- Quick & Easy removal of broken bolts and studs
Recommended tap wrench:
- NR9001C
- NR9002C
- NR9003C
- NR9006C
