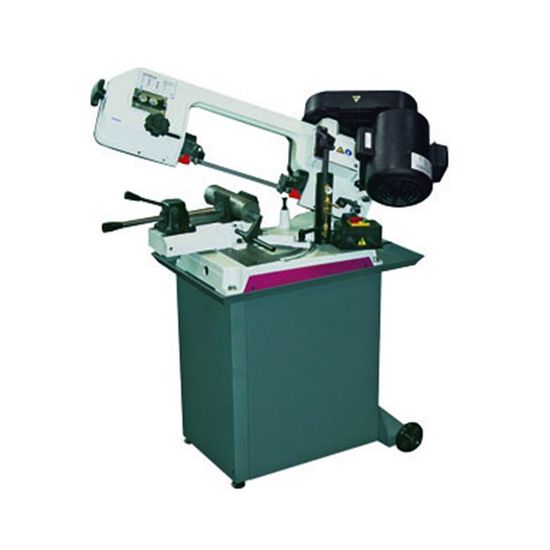

Name: OPTIMUM / Band Saw Metal, Industrial Quality, Micro-Tec / S131GH
Brand: OPTIMUM
SKU: S131GH
Price: 31552.00 ZAR
Availability: InStock

OPTIMUM / Band Saw Metal, Industrial Quality, Micro-Tec / S131GH

Based on 0 reviews. - Write a review

R 31,552.00

Ex Tax: R 27,436.52

Stock: 2
Model: S131GH
Weight: 81.00kg
Dimensions: 1,040.00mm x 550.00mm x 450.00mm
SKU: S131GH

OPTIMUM

For 10 or more items, click to quote

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Note: For walk-in customers, please check availability with relevant branch.

OPTIMUM / Band Saw Metal, Industrial Quality, Micro-Tec / S131GH

Metal band saw for easy sawing
Mitre saws from -45° to +60° via slewable saw bow
Protector switch for saw band saw belt off and for belt housing
Separate EMERGENCY-STOP push button
Low voltage electronics 24 V
Low-noise running
Saw band guiding via ball bearing
Three speed stages for a broad choice of materials
Micro switch for automatic limit stop
Scale good read for angle adjustment
With high-grade bimetallic saw band supplied as standard
Saw belt tension at the front adjustable via handwheel
Adjustable material stop for series productions
Quick-action vice for rapid workpiece clamping
Switch for saw band saw belt off and for belt housing

Saw bow

Grey cast-iron
Slewable on both sides from -45° to +60°

Length	965 mm
Width/depth	498 mm
Height	978 mm
Max. length	1085 mm
Max. height	1300 mm
Net weight	78 kg
Drive motor output	1,1 kW
Supply voltage	230 V
Phase(s)	1 Ph
Current type	~
Mains frequency	50 Hz
Clamping range 0° round (full material)	128 mm
Clamping range 0° quadratic (full material)	145 mm
Clamping range 0° rectangle horizontal (full material)	100 x 145 mm
Clamping range -45° round (full material)	90 mm
Clamping range -45° quadratic (full material)	100 mm
Clamping range -45° rectangle horizontal (full material)	70 x 85 mm
Clamping range +45° round (full material)	90 mm
Clamping range +45° quadratic (full material)	100 mm
Clamping range +45° rectangle horizontal	70 x 85 mm
Clamping range +60° round (full material)	45 mm
Schnittbereich +60° quadrat (Vollmaterial)	45 mm
Clamping range +60° rectangle horizontal	45 x 56 mm
Feed	stufenlos einstellbar
Saw band speed(s)	22/31/55 m/min
Saw band length	1638 mm
Saw band width	13 mm
Saw band thickness	0,65 mm
Cutting angle	-45 – 60 degree
Lifting the saw bow	manual
