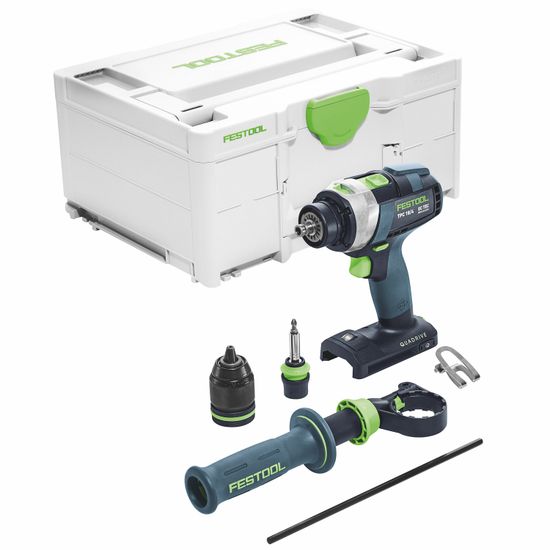

Name: FESTOOL Cordless Precussion Drill Tpc18-4-basic
Brand: FESTOOL
SKU: FES575604
Price: 8631.00 ZAR
Availability: InStock

Festool Cordless percussion drill TPC 18/4 I-Basic QUADRIVE

Order number: FES575604
Model: TPC 18/4 I-Basic

Pure power, controlled in four gears.

Powerful. Versatile. With four gears for every application. With the best switching concept you have ever operated. Whether you are working on wood, metal or masonry – thanks to the axial impact feature that can be switched on: The TPC is extremely durable and, thanks to its brushless EC-TEC motor, has extreme resilience and endurance. The large number of attachments, combined with perfectly matched accessories, make the QUADRIVE an unrivalled percussion drill for a wide range of possible uses. What about your hand twisting dangerously if the tool suddenly jams? Our intelligent kickback stop minimises the risk of this happening. Give it a go: The best drill that Festool has ever built!

Pure power, controlled in four gears.

Strengths and benefits

Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
For an even wider range of applications: Axial impact function that can be activated for drilling into masonry
The QUADRIVE with four gears for every working situation: From screwdriving with 50 Nm torque in first gear to precise drilling at 3600 rpm in fourth gear
Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular screwdriving
The depth stop and eccentric adapter also enable depth-limited screwdriving close to edges
Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution The 5.2 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs
Mobile: The QUADRIVE comes in a Systainer³ and so can be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site

Main areas of use

Production of wooden substructures, frame structures
Installation of doors and windows
Drilling and screwdriving in wood, metal and plastic
Drive screws into wood up to 10x300 mm
Drilling in wood up to 70 mm with Forstner drill bits
Drilling with impact in brickwork or masonry

Items included
without battery pack, without charger, CENTROTEC tool chuck, CENTROTEC BH 60 CE Imp magnetic bit holder, FastFix keyless chuck 13 mm KC 13-1/2-MMFP, bit PZ 2, additional side-mounted hand grip, belt clip, Systainer SYS3 M 187, in carton

Warranty all-inclusive

Features

Strengths and Benefits

Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
For an even wider range of applications: Axial impact function that can be activated for drilling into masonry
The QUADRIVE with four gears for every working situation: From screwdriving with 50 Nm torque in first gear to precise drilling at 3600 rpm in fourth gear
Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular screwdriving
The depth stop and eccentric adapter also enable depth-limited screwdriving close to edges
Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution The 5.2 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs
Mobile: The QUADRIVE comes in a Systainer³ and so can be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site

Product Application

Production of wooden substructures, frame structures
Installation of doors and windows
Drilling and screwdriving in wood, metal and plastic
Drive screws into wood up to 10x300 mm
Drilling in wood up to 70 mm with Forstner drill bits
Drilling with impact in brickwork or masonry

Scope of Delivery

without battery pack, without charger, CENTROTEC tool chuck, CENTROTEC BH 60 CE Imp magnetic bit holder, FastFix keyless chuck 13 mm KC 13-1/2-MMFP, bit PZ 2, additional side-mounted hand grip, belt clip, Systainer SYS3 M 187

Accessories

FastFix angle attachment, Drill stand for carpentry GD 320, Drill stand for carpentry GD 460 A, Drill stand for carpentry GD 460, angle chuck, FastFix eccentric attachment, FastFix eccentric attachment, FastFix depth stop DC UNI FF, Depth stop DD-DC, Adapter AD-3/8' FF, CENTROTEC tool chuck, FastFix keyless chuck 13 mm KC 13-1/2-K-FFP, FastFix keyless chuck 13 mm KC 13-1/2-MMFP, additional side-mounted hand grip, BP 18 Li 4.0 HPC-ASI battery pack, BP 18 Li 5.2 ASI battery pack, BP 18 Li 5.2 AS battery pack, Battery pack BP 18 Li 6,2 ASI, Battery pack BP 18 Li 6,2 AS, rapid charger TCL 6, SCA 8 rapid charger, rapid charger TCL 6, SCA 8 rapid charger

205222, 768768, 769042, 768119, 769097, 205223, 490294, 769126, 493539, 769064, 492135, 769067, 577072, 577073, 205034, 202479, 200181, 201797, 201774, 201135, 200178, 201136, 200311

Extra Information

This I-Basic version is supplied without battery pack and without charger.
The TPC 18/4 has a switchable axial impact function for masonry applications.
The FastFix interface allows quick tool-free attachment changes for drilling, screwdriving, angle drilling and angle screwdriving.
The CENTROTEC tool chuck is a compact quick-change system for rapid switching between drilling, countersinking and screwdriving accessories.
The electronic KickbackStop improves safety by reducing the risk of sudden wrist twisting if the drill jams.
For demanding work, use the correct Festool 18V battery pack to match the required power and runtime.

Pro Tips

Use 1st gear for high-torque screwdriving and large screws, and 4th gear for fast, precise drilling with smaller drill bits.
Switch on the impact function only when drilling in brickwork or masonry; keep it off for wood, metal and plastic.
Use the CENTROTEC chuck for quick bit changes when moving between pilot drilling, countersinking and screwdriving.
Set the torque properly for assembly work to avoid overdriving screws or damaging fittings.
Use the auxiliary handle for high-torque drilling or when working with larger drill bits for better control.

How to Use

Fit a compatible Festool 18V battery pack to the tool.
Select the correct chuck or attachment for the task, such as the CENTROTEC tool chuck or keyless chuck.
Choose the correct drill bit or screwdriver bit for the material and fastener.
Select the correct gear for the job: lower gears for torque, higher gears for speed.
Set the torque control when screwdriving to match the screw size and material.
Switch on the impact function only when drilling in brickwork or masonry.
Hold the tool firmly, using the auxiliary handle for heavier drilling or high-torque work.
Start slowly for control, then increase speed as required.
After use, remove the bit or drill accessory and store the tool in the Systainer³.

Technical Data

Drive type Battery
Battery voltage 18 V
Gears 4
Idling speed, 1st gear/2nd gear 0 - 500/0 - 800 RPM
Idling speed, 3rd/4th gear 0 - 2350/0 - 3600 RPM
Max. number of strokes 57600 RPM
Drilling diameter, wood/steel 70/13 mm
Drilling diameter in brickwork 10 mm
Torque adjustment 1st/2nd gear 2 - 20/2 - 20 Nm
Max. torque, wood/steel 50/75 Nm
Chuck range 1.5 - 13 mm
Battery capacity 4,0/5,2 Ah
Weight with battery 1,9/2,0 kg

Package Dimensions

Logistic Weight: 4.224 kg
Package L X W X H: 39.6 cm X 29.6 cm X 18.7 cm
Package Volume: 21.919 dm³

Scope of Delivery

without battery pack, without charger, CENTROTEC tool chuck, CENTROTEC BH 60 CE Imp magnetic bit holder, FastFix keyless chuck 13 mm KC 13-1/2-MMFP, bit PZ 2, additional side-mounted hand grip, belt clip, Systainer SYS3 M 187

Safety

Wear eye, ear and dust protection when drilling, screwdriving or impact drilling.
Use the auxiliary handle for high-torque drilling and when using larger drill bits.
Ensure the drill bit, screwdriver bit or chuck is securely fitted before starting work.
Keep hands, loose clothing and cables clear of the rotating chuck and bit.
Use the correct gear, speed and torque setting for the material and application.
Switch off the tool and remove the battery before changing accessories or making adjustments.
Do not use impact mode for wood, metal or plastic drilling.
Maintain a firm grip and stable stance, especially when drilling into masonry or when using large bits.
