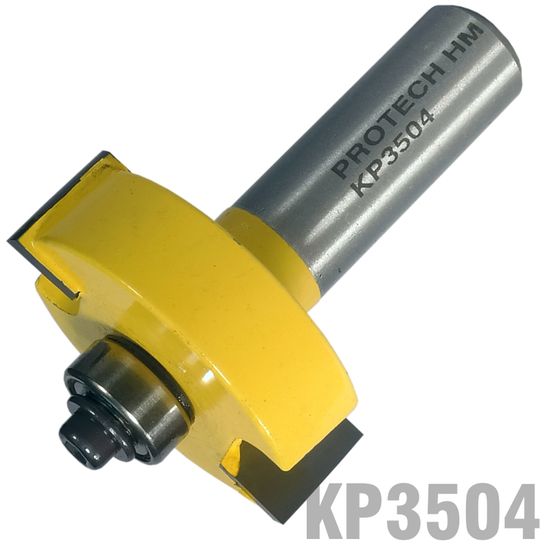

Name: Rabbeting Bit 1 1/2\' X 1/2\' Depth 1/2\' 1/2\'shank
Brand: PRO-TECH
SKU: KP3504
Price: 390.00 ZAR
Availability: InStock

Rabbeting Bit 1 1/2\' X 1/2\' Depth 1/2\' 1/2\'shank

$Rabbeting Bit 1 1/2\' X 1/2\' Depth 1/2\' 1/2\'shank$

Rabbeting Bit 1 1/2\' X 1/2\' Depth 1/2\' 1/2\'shank

NOTE

For walk-in customers, please check availability with the relevant branch.

Based on 0 reviews. - Write a review

R 390.00

Ex VAT: R 339.13

Quantity	Unit Price	You Save
5 or more	R 380.99	2.31 %
10 or more	R 375.22	3.79 %
20 or more	R 369.44	5.27 %

Stock: 3
MPN: KP3504
Weight: 0.14kg
Dimensions: 46.00mm x 86.00mm x 86.00mm
SKU: KP3504
UPC: 6009600404496

PRO-TECH

For 50 or more items, click to quote

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Rabbeting Cutter

For cutting rebates

Rabbet: (răb′ĭt) also re·bate (rē′bāt′,răb′ĭt)
A cut or groove along or near the edge of a piece of wood that allows another piece to fit into it to form a joint.

By choosing alternateive bearings with a larger outside diameter, the depth of cut can be reduced. The cutting height can be increased with multiple passess.

Pupular with picture framers and joinery where a lap joint is required.

Refer to the specification tab for the optonal alternative bearing choices offered by us.

PRO-TECH router bits are manufactured in Taiwan.

Router Bit Maintenance

Fortunately, this is pretty easy. The best way to prolong the life of a router bit is to keep it clean. And what you need to do varies with the type of bit.

Note: Sharpening is extremely important too.

Bits with Bearings:

To clean bits with bearings, first, remove the bearing. Then clean the bit as you did with non-bearing bits.

It's important to remove the bearings because even though router bearings are 'sealed,' resin remover can sneak in and dissolve the bearing grease. If this were to happen, you would be faced with the problem of trying to lubricate a sealed bearing.

Despite the claims of bearing grease sellers, we've never had much luck with this. Once that grease is gone, just go buy a new bearing.

Bit Shanks:

Periodically inspect the shanks of your router bits for rust or burrs. Either of these can be removed quickly with ScotchBrite^®. Left on, they can interfere with your ability to properly tighten the bit in the collet.

Part number	Cutting width	Cutting height	Depth	Shank
KP3504	1 ¹/₂ inch	¹/₂ inch	¹/₂ inch	¹/₂ inch
KP3504	38.1 mm	12.7 mm	12.7 mm	12.7 mm

Optional bearings to alter the cutting depth

Part number	Bearing size
KP3503-1	⁵/₈ inch OD x ³/₁₆ inch ID
KP3503-2	³/₄ inch OD x ³/₁₆ inch ID
KP3503-3	⁷/₈ inch OD x ³/₁₆ inch ID
KP3503-4	1 inch OD x ³/₁₆ inch ID
KP3503-5	1 ¹/₈ inch OD x ³/₁₆ inch ID
KP3503-6	1 ¹/₄ inch OD x ³/₁₆ inch ID
