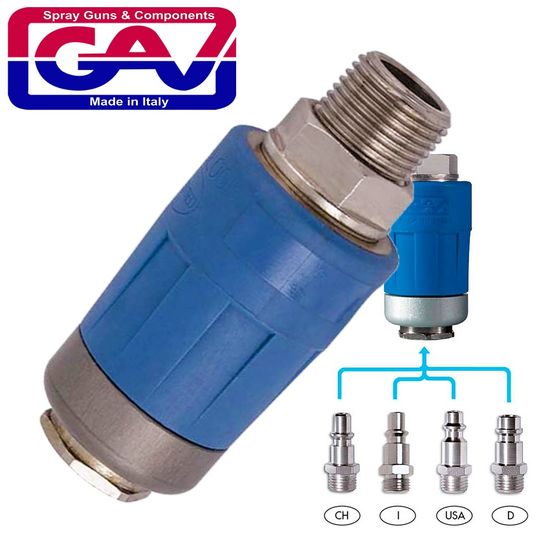

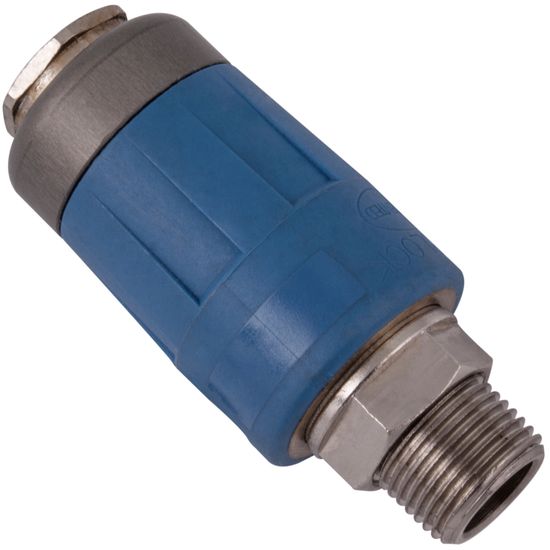

GAV Safety Quick Coupler 3/8 M Packaged Two Stage Release
R 475.00
Ex VAT: R 413.04
| Quantity | Unit Price | You Save |
|---|---|---|
| 5 or more | R 463.60 | 2.40 % |
| 10 or more | R 456.57 | 3.88 % |
| 20 or more | R 449.55 | 5.36 % |
- Stock: 8
- MPN: GAV AB-2P
- Weight: 0.14kg
- Dimensions: 183.00mm x 55.00mm x 55.00mm
- SKU: GAV AB-2P
- UPC: 6009515815691
For 50 or more items, click to quote
Airblock
Safety Quick Coupler (Packaged)
- Airblock is designed to first shut off the air and then open to release the coupler connection.
- A true safety feature
- Excellent airflow characteristics
- Universal type coupling
- Patented design
Made in Italy
3/8 inch male BSP thread
 |
 |
 |
| The air flow freely through the coupler | Push release backwards. The flow of air is cut and the pressure is vented. | The coupler is released from the connection |
The British Standard Pipe (BSP) is a family of standard screw thread types that has been adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread and has been adopted as a standard scale used in plumbing fittings.
Airblock
Safety Quick Coupler
Truly universal - It accepts all types of standards
|
|
|
|
| The air flow freely through the coupler | Push release backwards. The flow of air is cut and the pressure is vented. | The coupler is released from the connection |
Airblock
Safety Quick Coupler
Truly universal - It accepts all types of standards
|
|
|
|
| The air flow freely through the coupler | Push release backwards. The flow of air is cut and the pressure is vented. | The coupler is released from the connection |
| Cat No. | L | L1 | D | SW | Thread |
| GAV AB-2 | 72 mm | 11,5 mm | 28 mm | 19 mm | 3⁄8 inch BSP |
* SW = Spanner size
* Thread refers to British Standard Pipe thread
