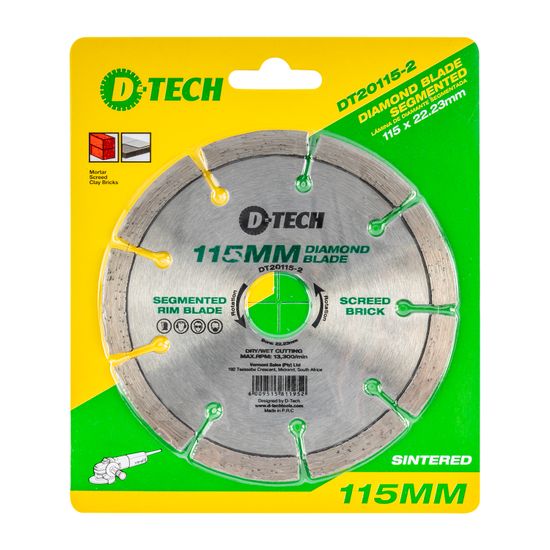

D-TECH Diamond Vlade Segmented Mid. 115x22,23mm Screed/brick/masonry

D-TECH Diamond Vlade Segmented Mid. 115x22,23mm Screed/brick/masonry
D-TECH Diamond Vlade Segmented Mid. 115x22,23mm Screed/brick/masonry
R 54.00
Ex VAT: R 46.96
Quantity Unit Price You Save
5 or more R 51.83 4.03 %
10 or more R 49.97 7.45 %
20 or more R 48.12 10.88 %
  • Stock: 8392
  • MPN: DT20115-2
  • Weight: 0.10kg
  • Dimensions: 120.00mm x 2.00mm x 2.00mm
  • SKU: DT20115-2
  • UPC: 6009515811952
For 30 or more items, click to quote
Segmented Diamond Blade

Diameter: Ø115mm
Arbor: Ø22.23mm
Body Thickness: 1.0mm

The segmented diamond blade is also known as a dry cut blade and is mostly used on dry cutting applications. Air flow cools the blade by making use of segments and cut-outs (gullets) in the body of the blade to dissipate heat.

The segments also have improved clearance of debris to allow for a swifter cut with a relatively smooth finish, however chipping may occur.

Segmented blades are the best option when water isn't available. The blades are durable and have a long life compared to other blades.

Application:

  • Medium hardness and abrasive materials such as asphalt, cement bricks, ceramic tiles and clay bricks.
Features
  • Segmented rim design which improve debris clearance.
  • Gullets on the body to dissipate heat.
  • Increased durability and long blade life.
  • Can be used for dry and wet cutting.



Download the Specification sheet:
View the Specification sheet:
Diamond Blade Tips

  • Make multiple shallow cuts instead of a single deep cut.
  • Do not side grind a cutting blade.
  • Fit the blade in the correct rotation direction. The life expectancy and cutting performance of the blade will be reduced when fitted reversed. It is also prone to becoming glazed.
  • When a diamond blade is glazed, it feels smooth to the touch with little to no diamonds exposed. This happens when the metal bond on the segment is too hard for the material it is cutting. To rectify - expose more diamonds on the segments by making shallow cuts in a soft, abrasive material like limestone.
  • A short diamond blade life is a result of using a blade with a soft metal bond on a more abrasive material such as sandstone or asphalt.
  • Wet cutting will extend the life of the blade
  • Select the correct blade for the material.
Description Specification
Packaging Type Hanging Card
Product Dimensions 133(L) x 153(W) x 3(H)mm
Product Weight 100g
Diameter Ø115mm
Arbor Ø22.23mm
Body Thickness 1.0mm
Segment Height 8mm
Segment Length 35mm
Segment Thickness 2.1mm
MAX RPM 13 300
