Name: FESTOOL Hole Drilling Lr32-sys
Brand: FESTOOL
SKU: FES584100
Price: 18722.00 ZAR
Availability: OutOfStock

Festool Hole drilling set LR 32-SYS

Order number: FES584100
Model: LR 32-SYS

Holes in series.

Hole series are always drilled with a spacing of 32 mm and a hole diameter of 5 mm or 3 mm. The hole series drilling system is a complete set for fast and simple production of series of holes for shelf supports, rear wall supports and fittings with the OF 1010 or OF 1400 router. Everything in a single Systainer.

Holes in series.

Main areas of use

Complete range for preparing holes series with 32 mm spacing
Including dowel drill dia. 5 mm and clamps

Adapted for

for OF 900, OF 1000, OF 1010, OF 1400

for use with hole line guide rails

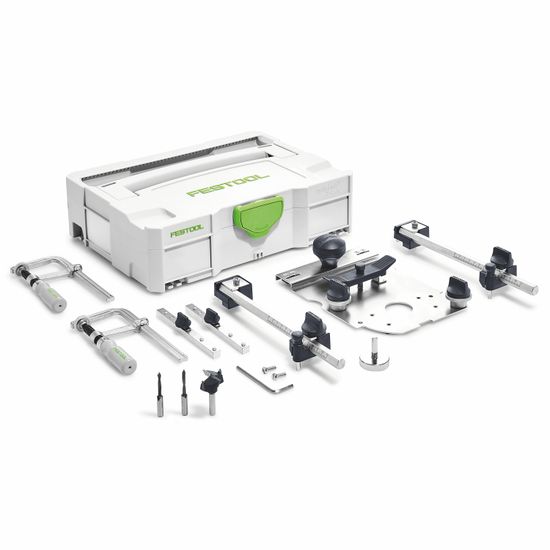

Items included
guide plate, centring mandrel, hinge location cutter HM ø 35 mm, dowel drill HW ø 5 mm (V-shaped tip), dowel drill HM ø 5 mm (with centring bit and pre-cutter), 2 parallel side fences with adjustable stop, FSZ 120 fastening clamps (two units), 2 x Longitudinal stop, screwdriver, WAF 5, Systainer SYS 1 T-LOC, in carton

Warranty all-inclusive

Features

Strengths and Benefits

Product Application

Complete range for preparing holes series with 32 mm spacing
Including dowel drill dia. 5 mm and clamps

Scope of Delivery

guide plate, centring mandrel, hinge location cutter HM Ø 35 mm, dowel drill HW Ø 5 mm (V-shaped tip), dowel drill HM Ø 5 mm (with centring bit and pre-cutter), 2 parallel side fences with adjustable stop, FSZ 120 fastening clamps (two units), 2 x Longitudinal stop, screwdriver, WAF 5, Systainer SYS 1 T-LOC

Accessories

Stopper LA-LR 32 FS

496938

Extra Information

The LR 32-SYS is designed for use with Festool hole-line guide rails.
Compatible router models listed for this system include OF 900, OF 1000, OF 1010 and OF 1400.
The system is commonly used with LR 32 guide rails such as FS 1400/2-LR 32 or FS 2424/2-LR 32.
The set includes 5 mm dowel drills for common shelf-pin and fitting hole applications.
The included 35 mm hinge location cutter is useful for concealed cupboard hinge preparation.
The guide rail itself is part of the LR 32 system setup and should be selected according to the workpiece length and application.

Pro Tips

Use a scrap test piece first to confirm the rail position, edge clearance and hole depth before drilling finished cabinet panels.
Mark the top, bottom and front edge of cabinet panels clearly so left and right panels are drilled consistently.
Clamp the guide rail securely before drilling to avoid small movements that can ruin a hole row.
Use depth control on the router to prevent drilling too deep through cabinet sides.
Keep the drill bits sharp and clean for neater shelf-pin holes and better fitting accuracy.

How to Use

Select the correct Festool hole-line guide rail for the length of the workpiece.
Fit the guide plate to the compatible Festool router.
Use the centring mandrel to centre the router accurately on the guide plate.
Fit the correct drill bit or hinge cutter for the application.
Position the guide rail using the side fences and longitudinal stops.
Clamp the guide rail securely to the workpiece using the supplied FSZ 120 clamps.
Set the drilling depth on the router before starting.
Move the router along the guide rail and drill each required hole position.
For hinge holes, use the 35 mm hinge location cutter and drill to the correct depth for the hinge cup.
After use, clean the parts and store the full set back in the Systainer.

Technical Data

Hole spacing 32 mm
Length of series of holes (without guide extension) 1400 / 2424
Side stop setting range 0 - 110 mm
Weight 0.9 kg

Package Dimensions

Logistic Weight: 4.284 kg
Package L X W X H: 39.5 cm X 29.5 cm X 10.5 cm
Package Volume: 12.235 dm³

Scope of Delivery

guide plate, centring mandrel, hinge location cutter HM Ø 35 mm, dowel drill HW Ø 5 mm (V-shaped tip), dowel drill HM Ø 5 mm (with centring bit and pre-cutter), 2 parallel side fences with adjustable stop, FSZ 120 fastening clamps (two units), 2 x Longitudinal stop, screwdriver, WAF 5, Systainer SYS 1 T-LOC

Safety

Wear suitable eye, ear and dust protection when routing or drilling.
Use only compatible Festool routers and suitable LR 32 system accessories.
Make sure the router, guide plate and cutter are correctly fitted before use.
Clamp the guide rail and workpiece securely before drilling.
Set the correct drilling depth before starting to prevent drilling through the workpiece unintentionally.
Keep hands clear of the router bit, hinge cutter and drilling path at all times.
Allow the router bit to stop completely before lifting the router from the guide plate or workpiece.
Disconnect the router from power before changing cutters, adjusting the guide plate or cleaning the system.
Use dust extraction where possible, especially when drilling MDF, chipboard or coated panels.
Check all stops and fences before drilling production panels to avoid repeated layout errors.
