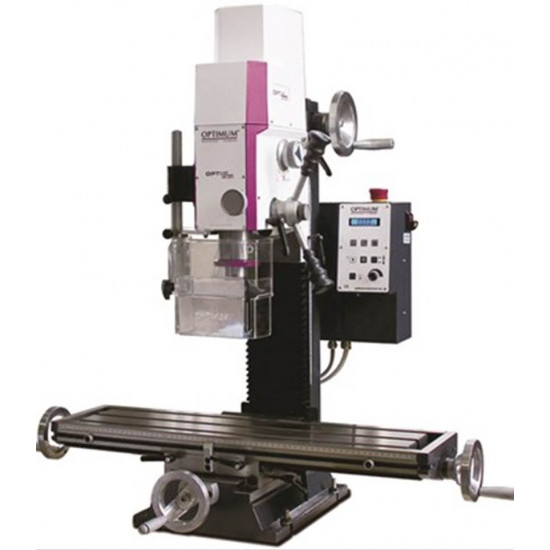

OPTIMUM / Opti Milling Machine MH22V 230V Industrial / MM3338135

OPTIMUM / Opti Milling Machine MH22V 230V Industrial / MM3338135
OPTIMUM / Opti Milling Machine MH22V 230V Industrial / MM3338135
R 46,288.00
Ex Tax: R 40,250.43
  • Stock: In Stock
  • Model: MM3338135 MILLING
  • Weight: 143.00kg
  • Dimensions: 770.00mm x 714.00mm x 910.00mm
  • SKU: MM3338135 MILLING

OPTIMUM / Opti Milling Machine MH22V 230V Industrial / MM3338135


  • Stable drilling and milling machine with electronically infinitely variable drive. MH 22VD with digital position indicator DRO 5
  • Feed spindles adjustable without backlash by adjustable spindle nuts
  • Stable dovetail guide, precision ground and scraped with adjustable wedges
  • EMC filter class B (use in private households)
  • All guides are ground and visibly scraped (oil pockets for lubrication)
  • Precisely processed
  • Double-row angular contact ball bearings in the axles, adjustable without backlash
  • Safety electronics in 24 Volt version
  • Bellows as guide protection
  • Forward / reverse operation
  • Drilling and milling head can be tilted by ± 900, for milling and drilling work in any angular position
  • machine lamp
  • Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user
  • Easy to read speed display and depth display, switchable mm / inch
  • fine feed

length  945 mm
Width depth  650 mm
height  950 mm
Weight (net)  120 kg
Power drive motor  0.95 kW
Supply voltage  230V
Phase (s)  1 Ph
Current Type  ~
power frequency  50 Hz
Knife head size max.  52 mm
End mill size max.  12 mm
Vertical spindle projection  170 mm
Vertical spindle Spindle mount  BT 20
Vertical spindle speed range  90 – 3000 min-1
Vertical spindle Number of speed ranges  2
Vertical spindle Control of the speed control  electronic
Horizontal milling length  700 mm
Horizontal milling width  180 mm
Distance vertical spindle – horizontal milling min.  370 mm
Distance vertical spindle – horizontal milling table max.  370 mm
Horizontal milling T-slots size  12 mm
Horizontal milling T-slots number  3
Horizontal milling T-slots clearance  63 mm
Horizontal milling load max.  50 kg
Traverse X-axis manually  480 mm
Travel Y-axis manually  175 mm
Travel Z-axis manually  370 mm
Drilling capacity steel (S235JR)  20 mm
Continuous drilling capacity steel (S235JR)  16 mm
Vertical spindle Turning area milling head Z – X plane  90 degrees
Vertical spindle Pinole diameter  60 mm

Vertical spindle Quill stroke  50 mm
