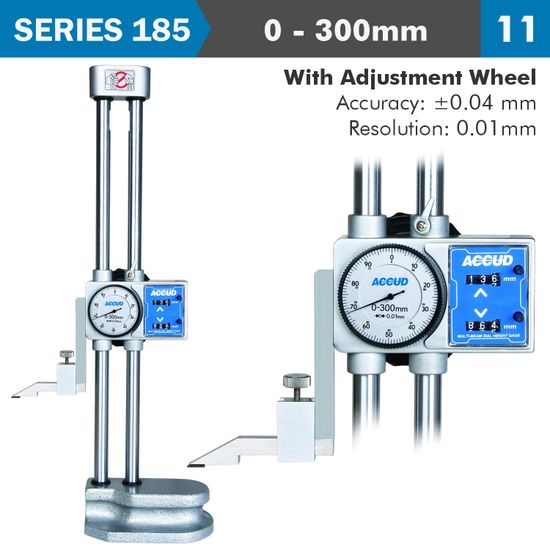

ACCUD Dig. Height Gauge 300mm 0.04mm Acc. Driving Wheel 0.01mm Grad. S/steel

Key Features:

• Dual-Column Design for Enhanced Rigidity: The two-column structure provides exceptional stability and minimizes deflection, allowing for accurate measurements of larger and heavier components. This design ensures that even during extended height measurements, there is minimal deviation.
• Mechanical Dial Indicator: The dial indicator provides highly accurate and easy-to-read measurements without the need for batteries, making it reliable in environments where electronic instruments may not be suitable.
• Fine Adjustment Mechanism: The gauge is equipped with a fine adjustment knob, allowing for precise control over the movement of the measuring head, ensuring the highest level of accuracy in every measurement.
• Smooth Sliding Mechanism: The polished dual columns and precision-ground surfaces ensure smooth, friction-free movement for the measuring head, making it easy to adjust to the required measurement point.
• Large, Easy-to-Read Dial: The large analog dial is clearly marked for easy reading of measurements, providing a highly accurate and reliable method for tracking increments.
• Sturdy, Flat Base for Stability: The solid, flat base ensures that the height gauge remains stable on a surface plate or work surface, preventing any movement that could affect the measurement accuracy.
• Hardened Stainless Steel Construction: The gauge is made from durable stainless steel, offering resistance to corrosion and wear, which ensures long-term precision and performance, even in challenging industrial environments.
• Locking Screw for Secure Measurements: The built-in locking screw holds the measuring head in place once the desired measurement is achieved, allowing for consistent and repeatable results during repetitive tasks.

• Indicator graduation: 0.01mm
• Carbide tipped scriber
• Made of stainless steel (except the base)
• With driving wheel
• Optional accessory: 267 series clamps

Applications:

• Machining & Toolmaking: Ideal for measuring the height of large parts, tools, and components during machining operations, ensuring that finished parts meet design tolerances.
• Manufacturing & Quality Control: Used for inspecting the height of components during production to ensure consistency and compliance with specifications.
• Automotive & Aerospace: Suitable for measuring and inspecting larger components, such as engine parts or structural components, where precise height measurements are essential.
• Metalworking & Fabrication: Excellent for marking and measuring the height of materials and components in fabrication projects, ensuring that each part is cut and assembled with precision.
• Engineering & Design: Essential for prototype development and engineering applications where precise height measurements are required to meet design specifications.

The Two-Column Dial Height Gauge provides a combination of mechanical precision, stability, and durability for accurate height measurements, particularly in environments where reliability is key. Its sturdy dual-column construction, combined with the mechanical dial indicator, ensures precision and repeatability, making it a go-to tool for professionals in demanding industrial applications.

Technical Specifications
