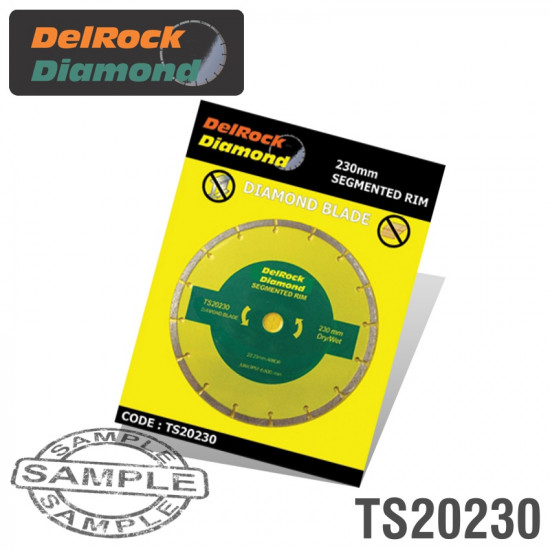

DIAMOND BLADE 230MM SEGMENTED DELROCK

DIAMOND BLADE 230MM SEGMENTED DELROCK
-20 %
DIAMOND BLADE 230MM SEGMENTED DELROCK
This offer ends in:
Day
Hour
Min
Sec
R 142.31
R 179.00
Ex Tax: R 123.75
  • Stock: 202
  • Model: TS20230
  • Weight: 0.63kg
  • Dimensions: 230.00mm x 230.00mm x 5.00mm
  • SKU: TS20230
  • UPC: 6009675086108
For 50 or more items, click to quote
Segmented diamond blade





Diameter: ø230mm
Bore: ø22.23mm
Max rpm: 6,600 rpm
Use: Concrete, brick, paving & building materials

The segmented diamond blade is also known as a dry cut blade and is mostly used on dry cutting applications. Air flow cools the blade by making use of segments and cut-outs (gullets) in the body of the blade to dissipate heat.

The segments also have improved clearance of debris to allow for a swifter cut with a relatively smooth finish, however chipping may occur.

Segmented blades are the best option when water isn't available. The blades are durable and have a long life compared to other blades.

Diamond blade tips





  • Make multiple shallow cuts instead of a single deep cut.
  • Do not side grind a cutting blade.
  • Fit the blade in the correct rotation direction. The life expectancy and cutting performance of the blade will be reduced when fitted reversed. It is also prone to becoming glazed.
  • When a diamond blade is glazed, it feels smooth to the touch with little to no diamonds exposed. This happens when the metal bond on the segment is too hard for the material it is cutting. To rectify - expose more diamonds on the segments by making shallow cuts in a soft, abrasive material like limestone.
  • A short diamond blade life is a result of using a blade with a soft metal bond on a more abrasive material such as sandstone or asphalt.
  • Wet cutting will extend the life of the blade
  • Select the correct blade for the material.
consider safety for your health and the people around you

General safety suggestions:

It is advisable to always have the following items nearby and in a good condition

  • Eye protection – clean and scratch free
  • Hearing protection – quality earmuffs
  • Dust masks – discard old and dirty masks
  • Gloves – for easy handling of material and hand protection
Wear Gloves Eye Protection Hearing Protection Dust Mask
Wear Gloves
Eye Protection
Hearing Protection
Dust Mask
Specifications





Order number Diameter Bore Style
TS20230 230mm 22.23mm Segmented
