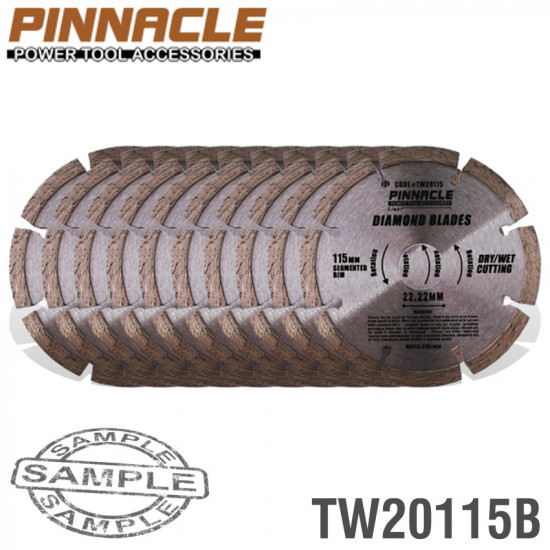

DIAMOND BLADE SEGMENTED 115MM PINNACLE BRAND X10 PACK

DIAMOND BLADE SEGMENTED 115MM PINNACLE BRAND X10 PACK
DIAMOND BLADE SEGMENTED 115MM PINNACLE BRAND X10 PACK
R 485.42
Ex Tax: R 422.10
  • Stock: In Stock
  • Model: TW20115B
  • Weight: 2.70kg
  • Dimensions: 230.00mm x 230.00mm x 13.00mm
  • SKU: TW20115B
  • UPC: 600951583691
Segmented diamond blades





Diameter: ø115mm
Bore: ø22.23mm
Max rpm: 13,300 rpm
Use: Concrete, brick, paving & building materials
QTY: 10

The segmented diamond blade is also known as a dry cut blade and is mostly used on dry cutting applications. Air flow cools the blade by making use of segments and cut-outs (gullets) in the body of the blade to dissipate heat.

The segments also have improved clearance of debris to allow for a swifter cut with a relatively smooth finish, however chipping may occur.

Segmented blades are the best option when water isn't available. The blades are durable and have a long life compared to other blades.

Diamond blade tips





  • Make multiple shallow cuts instead of a single deep cut.
  • Do not side grind a cutting blade.
  • Fit the blade in the correct rotation direction. The life expectancy and cutting performance of the blade will be reduced when fitted reversed. It is also prone to becoming glazed.
  • When a diamond blade is glazed, it feels smooth to the touch with little to no diamonds exposed. This happens when the metal bond on the segment is too hard for the material it is cutting. To rectify - expose more diamonds on the segments by making shallow cuts in a soft, abrasive material like limestone.
  • A short diamond blade life is a result of using a blade with a soft metal bond on a more abrasive material such as san
